A batch that looked clean at fill can start showing a pink or red cast once carts sit on the bench, move through packaging, or come back from storage. That usually triggers the same questions. Is it oxidation, bad distillate, a terpene problem, too much heat, or a cultivar-driven color that was already in the oil?
For formulators, why is my cart oil red isn't a cosmetic question. It’s a process question. Color drift can signal cannabinoid degradation, poor oxygen control, weak filtration, unstable raw material, or a formulation choice that looked fine on paper but doesn’t hold up in a cartridge.
The fastest way to solve it is to stop treating red oil as one issue. It’s a symptom with several possible root causes. If you trace the batch through extraction, post-processing, blending, filling, and storage, the source usually becomes obvious. The useful work happens there, inside the SOP, not in guessing from the final cartridge alone.
Introduction A Critical Quality Control Issue for Formulators
A red cart doesn’t just create visual inconsistency. It raises doubts about potency retention, flavor accuracy, and shelf stability. If one lot stays bright and another shifts red under similar conditions, that’s a sign your process window is too loose somewhere upstream.
In production, the most common mistake is assuming all discoloration means the same thing. It doesn’t. Some red oil starts with the biomass. Some comes from oxidation at the oil-air interface. Some develops because the oil spent too long hot during blending or filling. Some batches carry excess waxes, lipids, or other material that should have been removed earlier.
That distinction matters because the corrective action changes with the cause. Tightening fill temperature won’t fix pigment carryover from a cultivar. Re-filtering won’t solve a headspace oxygen problem after capping. Swapping hardware also won’t rescue a blend built around unstable inputs.
A good diagnostic approach looks at four things first:
- Where the color appears: top ring, full column, streaking, or uniform darkening
- When it appears: immediately after fill, after storage, or after first use
- What changed in the batch: distillate source, terpene blend, filtration, decarb, fill temp, or cap timing
- How repeatable it is: one line, one operator, one tank, or the whole run
Shop-floor rule: If the color change is localized, suspect process exposure. If it’s uniform from the start, suspect raw material or formulation.
The practical answer is rarely one variable by itself. Red oil usually shows up when a batch already has some vulnerability, then heat and oxygen expose it.
The Primary Culprit Oxidation and Thermal Degradation
Oxidation is the first place I look when a cart turns red after fill. It’s the most common explanation for a batch that was visually acceptable in the tank but shifts once it sits in cartridge headspace. The classic sign is the red ring of death, a red layer at the top of the oil where it meets air, a pattern described in extraction community discussions about cartridge discoloration and distillate stability in this Future4200 thread on red distillate in carts.
Why the top of the cart turns first
The oil-air interface is where oxygen exposure is highest. If your fill leaves headspace and the oil has been heated, the conditions for visible oxidation are already there. The Future4200 discussion notes that one key reason cart oil turns red is oxidation, often manifesting as the red ring of death at the top of the cartridge due to air exposure, and that failure to vacuum seal distillate can lead to rapid oxidation.
That matters because a ring at the top usually points to exposure during filling, capping, or storage, not just a vague “old oil” problem. If the column is still lighter below the ring, your process likely introduced oxygen after the oil was already in acceptable condition.
Heat makes the problem move faster
Heat doesn’t create oxygen, but it speeds the reaction. Warm oil is easier to fill, easier to blend, and easier to decarb, but every extra minute at unnecessary temperature gives oxygen more opportunity to react with cannabinoids. The same Future4200 discussion notes that this issue is exacerbated when distillate is heated during filling, because oxygen permeability allows cannabinoids to interact with air.
A lot of teams over-focus on the setpoint and under-focus on dwell time. Two batches can hit the same fill temperature and behave differently if one sits in a heated reservoir far longer. That’s why thermal control has to include all of these:
- Pre-fill hold time: Don’t leave a full day’s oil sitting hot because it improves line flow.
- Tank geometry: A broad heated vessel exposes more surface area than a narrower setup.
- Cap timing: Delays between fill and closure increase contact with air.
- Rework cycles: Reheating the same oil several times usually shows up in color first.
If your team is troubleshooting viscosity and process temperature together, this guide on how to decarb cart oil for cartridge formulation is a useful reference point.
Oxidation is predictable. If the oil is warm, exposed to air, and left with headspace, the color shift shouldn’t be treated as a mystery.
What oxidation changes beyond appearance
The color issue matters because it often tracks with chemistry. The Future4200 discussion states that oxidation degrades THC into less psychoactive cannabinoids like CBN. Even if the cart still functions, the batch may no longer match the original potency and sensory intent.
From a formulation standpoint, the practical losses usually show up as:
| Observation in the cart | Likely practical implication |
|---|---|
| Red ring near headspace | Oxygen exposure during or after fill |
| Full-column darkening after hot hold | Thermal stress plus oxidation |
| Flattened aroma with darker oil | Volatile loss and degraded sensory profile |
| Lot-to-lot inconsistency | Weak process control rather than isolated hardware failure |
The bad fix is blending discolored oil into fresh oil and hoping the color evens out. The better fix is finding the exact point where oxygen and heat entered the SOP.

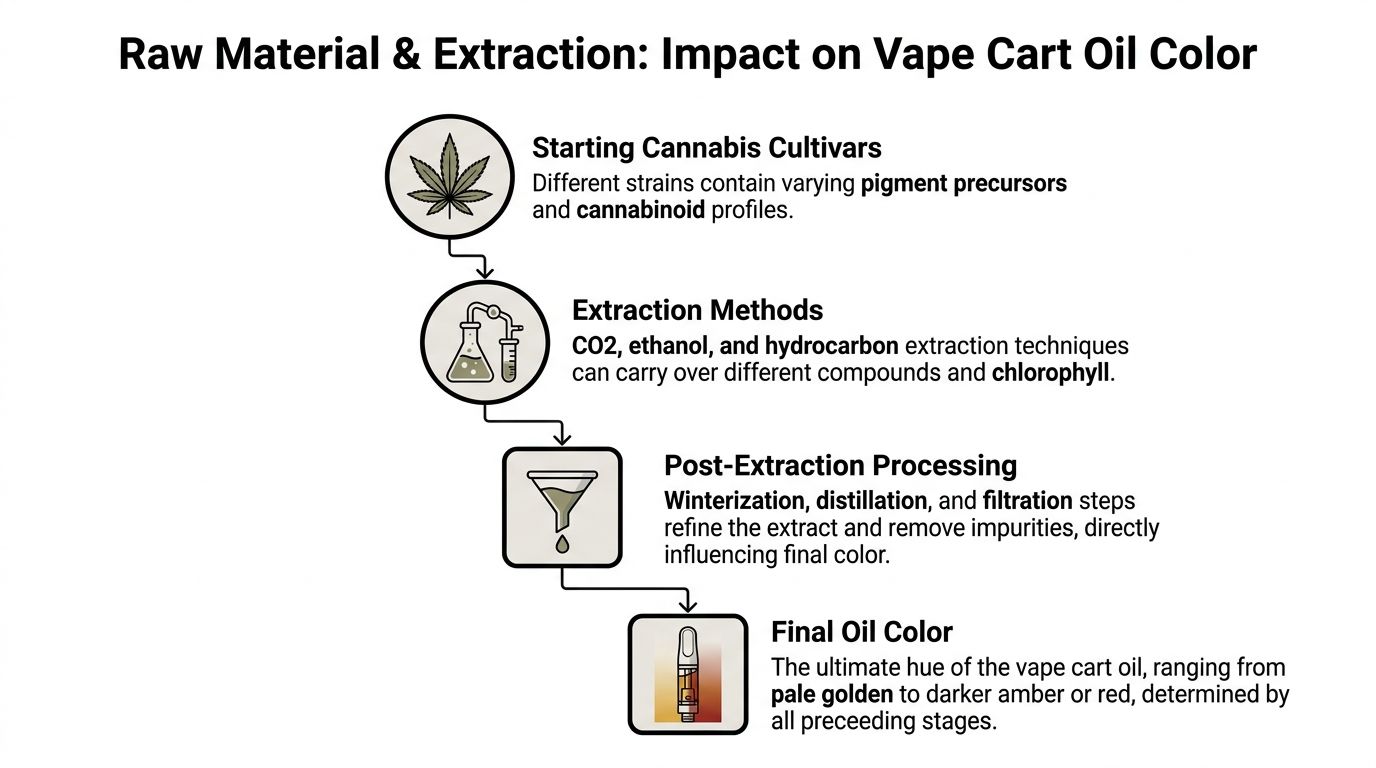

How Raw Material and Extraction Choices Influence Color
Not every red cart is a failed cart. Some oils start darker because the input material and extraction path carry more native color into the final product. If the entire batch is uniformly red or red-amber from the beginning, I start upstream with biomass, extraction method, and cleanup.
Cultivar pigments can survive the process
Some cannabis inputs naturally carry anthocyanins, and those pigments can push extracts toward red or purple hues. That doesn’t automatically mean the batch is degraded. As described in Releaf’s guide to THC oil color, natural pigment content from cannabis strains, particularly those high in anthocyanins, can impart red or purple hues during extraction, especially when the process preserves more of what’s in the plant material from the start.
That’s where operators sometimes misread the problem. They compare a pigment-heavy run to a pale distillate from a different feedstock and call one of them defective. If the SOP, filtration, and storage were all sound, the difference may reflect the source material.
Cleanup quality changes the final look
Filtration and post-extraction refinement still matter. The same Releaf guide notes that thorough filtering removes fats and waxes for golden clarity, while lesser filtration can result in red-tinged products. In practice, that means a darker red tone may be tied less to pigments and more to what you failed to remove.
The first questions I’d ask the extraction side are simple:
- Was the crude winterized thoroughly enough for this feedstock?
- Did filtration performance drift between lots or operators?
- Did the distillation SOP leave more heavy carryover than usual?
- Was the source biomass unusually mature or visually darker before extraction?
A clean upstream process usually gives formulators more room downstream. A marginal extract forces you to formulate around instability.
A quick way to separate pigment from process failure
Use the visual pattern and batch history together. That gets you close fast.
| What you see | What it usually suggests |
|---|---|
| Uniform red tone from the start | Native pigment or upstream carryover |
| Opaque or muddier look | Incomplete cleanup, retained waxes or fats |
| Bright oil that reddens later | Post-process exposure rather than source color |
| Different color by cultivar under same SOP | Input-dependent pigment load |
If the whole run is red before terpene addition, stop blaming the blend first. Audit extraction and purification.
There’s also a product-positioning issue here. Brands often want a specific visual standard across SKUs even when the inputs don’t naturally behave the same way. That’s fine, but it requires controlled sourcing and realistic specs. You can’t promise one consistent shade across every batch if your feedstock and cleanup standards allow wide variability.
For teams comparing extract styles and how much native material they carry into a formulation, this piece on resin or rosin in cartridge applications helps frame the trade-offs.
The Role of Terpenes and Diluents in Color Stability
A lot of red cart troubleshooting stalls because the lab only looks at cannabinoids. In actual formulation work, terpenes and diluents often decide whether a decent oil stays stable or starts drifting in color. They affect aroma, viscosity, volatility, and the way the blend behaves under heat and oxygen exposure.
Terpene profile design affects more than flavor
When you’re building a terpene profile for vape cartridges, think in layers. Top notes lift the opening aroma, mid notes shape the recognizable body, and base notes hold the finish together. That structure matters for strain-inspired work, but it also matters for stability because each class of compounds behaves differently under processing stress.
A practical formulation guide looks something like this:
- Top notes: Usually the first to feel heat stress and the first place where aroma drift becomes obvious.
- Mid notes: These define whether the blend still reads as the intended cultivar after storage.
- Base notes: These can anchor the profile, but heavy use can also make a batch feel darker or denser than intended.
If a blend looks stable in the beaker but reddens in carts, ask whether the terpene system is too reactive for the actual fill and storage conditions. A profile that works in a small bench sample can fail once it sees production heat, hold time, and cartridge headspace.
Purity and composition matter in formulation
For formulating for distillate, cleaner inputs generally give you a more predictable result. The publisher information provided for this article describes terpene inputs that are THC-free, lab-verified, and free of VG, PG, PEG, and MCT, which is the kind of specification formulators should care about because every extra variable complicates stability.
That doesn’t mean every non-terpene additive automatically causes redness. It means additives create more pathways for inconsistency. If you’re trying to replicate flavor with precision and also keep the oil visually clean, fewer moving parts is usually better.
Here’s the trade-off in plain terms:
| Formulation choice | Upside | Risk to monitor |
|---|---|---|
| Terpene-only system | Cleaner sensory design, fewer variables | Sensitive to heat and oxygen if handling is loose |
| Added thinning agents | Easier flow in some setups | Extra degradation pathways and visual variability |
| Broad, complex blend | Closer strain-inspired effect | Harder to keep consistent lot to lot |
| Minimalist blend | Better process control | Can miss target flavor realism |
For teams dialing in viscosity without overcomplicating the blend, this resource on how to thin distillate for cartridges is worth reviewing.
What works and what usually doesn’t
What works in production is boring, repeatable discipline. Tight terpene storage. Controlled addition temperature. Minimal hot hold after blending. Small validation runs before scaling a new profile. One approved mixing order, not three operator-specific versions.
What usually doesn’t work is trying to fix a weak oil with an aggressive terpene load or masking discoloration with flavor intensity. The cart may smell louder, but the visual and chemical instability is still there.
Formulation check: If the blend needs high stress to stay pourable, the issue may be the process design, not the terpene choice.
For a strain-inspired terpene blend for cannabis product formulation, I’d audit these points before approving scale-up:
Blend addition temperature
Add at the lowest effective temperature that still gives uniform incorporation.Exposure time after mixing
Don’t let mixed oil sit open while waiting on hardware or line clearance.Container choice during staging
Wide-mouth and partially filled vessels create unnecessary oxygen exposure.Sensory drift after hold
If the profile dulls before visible reddening appears, stability is already moving in the wrong direction.
This is also where top, mid, and base note balance pays off commercially. A well-built profile for carts isn’t just about first aroma. It needs to survive production reality and still taste like the target on the shelf.
A Practical SOP Checklist for Prevention and Remediation
If you’re trying to stop red oil from showing up again, don’t start with theory. Start with the batch map. Track the oil from extraction receipt to final capped cart and identify where it first had a chance to see unnecessary heat, air, or unstable inputs.
Prevention steps that actually reduce color drift
The strongest SOPs are specific enough that two operators produce the same result.
- Lock raw material specs: Define acceptable color, clarity, and cleanup expectations for incoming distillate before it reaches formulation.
- Control fill heat tightly: Use only enough heat to move the oil. Extra headroom on temperature becomes extra stress on the batch.
- Reduce headspace exposure: Fill, cap, and stage in a way that limits the time oil sits exposed to air.
- Standardize vessel handling: Keep reservoirs closed whenever possible. Open tanks and repeated transfers create avoidable exposure.
- Qualify new terpene systems in small runs: Bench success doesn’t guarantee cartridge stability.
- Store ingredients correctly: Terpene handling gets sloppy fast in busy production. This guide on how to store terpenes for formulation stability is a good baseline for tightening that part of the SOP.
A simple line audit often catches the underlying problem faster than lab debate. Look for where operators wait, where carts sit uncapped, where oil is reheated, and where partially filled containers are left on the floor.
Diagnostic checklist by symptom
Different visual patterns point to different failures. Use the symptom to narrow the search.
| Symptom | First place to inspect |
|---|---|
| Red ring at top of cartridge | Fill-to-cap timing and headspace exposure |
| Entire batch red before filling | Source oil, extraction cleanup, cultivar pigments |
| Batch reddens after warehouse time | Storage temperature and light exposure |
| One line shows issue, another doesn’t | Equipment dwell time or operator handling |
| Aroma falls off with color shift | Blend heat history and volatile loss |
Don’t remediate before you isolate the stage that caused the problem. Otherwise you’ll spend money fixing inventory and keep producing the same defect.
What remediation can and can’t do
Yes, you can sometimes improve appearance through reprocessing. No, that doesn’t mean it’s the right business decision.
Possible remediation routes include reheating and remixing, additional cleanup, or more aggressive post-processing. The trade-offs are real:
- Reheating and mixing: Might temporarily even out a layer, but it doesn’t remove the root cause if oxygen control stays poor.
- Additional refinement: Can improve color, but may also strip desirable character from the oil.
- Re-distillation or aggressive cleanup: Sometimes necessary, but expensive in labor, time, and usable output.
- Blending off-spec material into fresh lots: Usually creates a hidden consistency problem that shows up later.
A better approach is to classify red oil into two categories. One category is visually off but still process-recoverable. The other is chemically or sensorially too far gone to fit the SKU standard. Teams get into trouble when they treat both categories the same.
The audit questions I’d use on a live batch
If a colleague asked me why is my cart oil red, I’d run through these in order:
- Did the oil arrive this color, or did it shift after blending?
- Was the color uniform, or concentrated at the top?
- How long did the batch stay heated before and during filling?
- Was there any delay between fill and closure?
- Did the terpene blend or additive system change?
- Did the extract source or filtration quality change?
- Did the carts sit in heat or light after production?
That sequence keeps the team from jumping to the wrong corrective action. Most red-cart failures are traceable if the batch record is honest and detailed enough.
Conclusion Protecting Product Quality and Brand Integrity
Red cart oil is usually a visible warning that something in the process, raw material, or formulation chain needs tighter control. Sometimes the cause is benign native pigment. Often it’s avoidable exposure to heat and oxygen. In both cases, the fix comes from disciplined diagnosis, not guesswork.
The strongest operators treat color as part of product performance. A cart has to look right, fill right, vape right, and hold its intended flavor profile over time. If one of those slips, the rest usually follow.
That’s why prevention is cheaper than cleanup. Better extraction cleanup, tighter thermal handling, cleaner formulation inputs, and faster sealing do more for shelf quality than any last-minute rework strategy. The labs and brands that stay consistent are the ones that write narrow SOPs and enforce them.
For formulating strain-inspired terpene blends for vape cartridges, the commercial takeaway is simple. Stable products come from stable ingredients and repeatable handling. If you want reliable color, reliable aroma, and fewer lot-to-lot surprises, you need both.
